 Versatile Automatic Powder Actuated Tool

  • One tool for most fasteners
  • Collated pins (10pcs/strip) automatically advance in the magazine without reloading (pin's length up to 32mm)
  • Also shoot Loose Pins, Threaded Studs (M6, M8), Metal Washer, Ceiling Clip, Conduit Clip in the muzzle without change any parts. (pin's length up to 75mm)
  • Powder loads (6.8/11mm) 10pcs/strip with automatically advance device
  • Simple design to lower maintenance
  • High productivity fastening application.
  • Easy cleaning and servicing.

Powder Loads .27 cal. (6.8/11mm), 10 pcs/strip
Weight  2.2 kg
Drive pins * .300 flat head or DN (8mm) collated pins.
* 10 pins per strip, 16 up to 32mm pin length in magazine.
* 16mm up to 72mm in the muzzle for loose pins.
Applications For wood, concrete and steel.


POWDER LOADS
.27 Cal. (6.8/11mm) powder loads, 10pcs in a strip
L27-3 (green color), L27-4 (yellow color), L27-5/6(red Color)


proimages/powerload3-5new.jpg
COLLATED PINS
.300 & DN Pins (10pcs/strip)
proimages/.300DNMnew.jpg

LOOSE PINS

 proimages/系列H30DN.jpg

Inquiry
Product Introduce
EXP76 can shoot collated pins and loose pins as follows:

COLLATED PINS

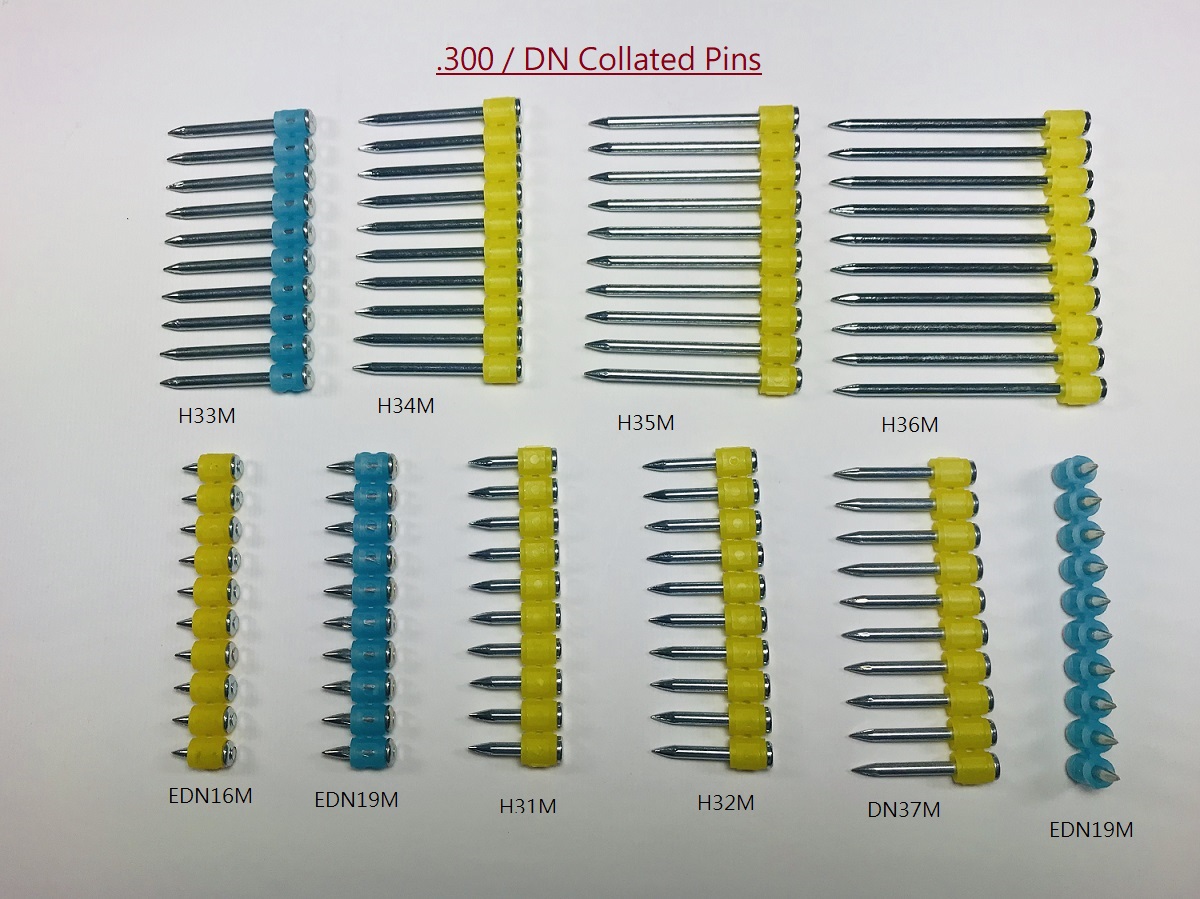

proimages/DN_Collated_Pins.jpg
.300 / DN Pins (10pcs/strip)
Part No.  Shank length      Overall length     Shank dia.
EDN16M      16mm      19mm      3.7mm
EDN19M 19 22 3.7
DN22M 22 25 3.7
DN27M 27 30 3.7
DN32M 32 35 3.7


  Part  No  Shank length  Overall length    Shank dia.
H38KM 1/2"       15mm      3.6mm
H39KM 5/8 18 3.6
 H30M 3/4 22 3.6
H31M 1 28 3.6
H32M 1-1/4 34 3.6












LOOSE PINS
.300/DN Pins, M6/W6 M8 Thread Studs, with Washer/Metal Clips

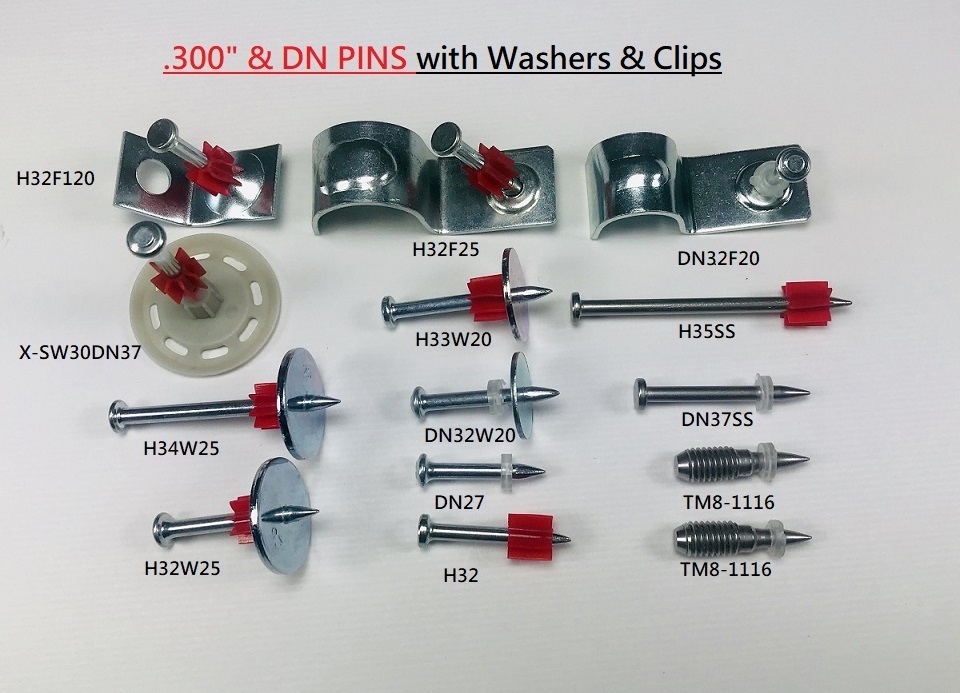

 proimages/系列H30DN.jpg

.300 Head Pins
.300 head pin zinc plated with plastic flute, "K" Knurled shank for steel.
proimages/H38K.png


Part No.  Shank length    Overall length      Shank dia.
H38K 1/2"       15mm      3.6mm
H39K 5/8 18 3.6
  H30(K) 3/4 22 3.6
H31 1 28 3.6
H32 1-1/4 34 3.6
H33 1-1/2 40 3.6
H34 2 53 3.6
H35 2-1/2 66 3.6
H36 3 78 3.6


.300 Head Pins (with 20mm metal washer)
Zinc plated with plastic flute and Ø20mm metal washer.
proimages/H32W20.png


Part No.  Shank length      Overall length    Shank dia.
H32W20  1-1/4"       34mm       3.6mm
H33W20 1-1/2 40 3.6
H34W20 2 53 3.6
H35W20 2-1/2 66 3.6
H36W20 3 78 3.6


.300 Head Pins (with 25mm metal washer)

Zinc plated with plastic flute and Ø25mm metal washer.
proimages/H32W25.png

Part No.  Shank length     Overall length     Shank dia.
H32W25 1-1/4      34mm      3.6mm
H33W25 1-1/2 40 3.6
H34W25 2 53 3.6
H35W25 2-1/2 66 3.6
H36W25 3 78 3.6


DN Pins

Zinc plated with Ø8.5mm plastic washer, "K" is Knurled shank for steel.
proimages/EDN16SS.png


Part No.  Shank length      Overall length     Shank dia.
EDN16P8      16mm      19mm      3.7mm
EDN19P8 19 22 3.7
DN22P8 22 25 3.7
DN27P8 27 30 3.7
DN32P8 32 35 3.7
DN37P8 37 40 3.7
DN42P8 42 45 3.7
DN47P8 47 50 3.7
DN52P8 52 55 3.8
DN57P8 57 60 3.8
DN62P8 62 65 3.8
DN72P8 72 75 3.8
DN82P8 82 85 3.8


DN Pins (with 25mm metal washer)

Zinc plated with Ø8.5mm plastic washer and Ø25mm metal washer.

proimages/DN27W25.png

Part No.  Shank length      Overall length      Shank dia.
DN27W25       27mm      30mm      3.7mm
DN37W25 37 40 3.7


DN Pins (with 35mm metal washer)

Zinc plated with Ø8.5mm plastic washer and Ø35mm metal washer.

proimages/DN27W35.png

Part No.    Shank length       Overall length        Shank dia.
DN27W35      27mm      30mm      3.7mm
DN37W35 37 40 3.7


Angle Clip Assemblies

.300 head pins, zinc plated pastic flute assembled with eyelet washer and angle clip.

proimages/F321.png

Part No.      Shank length        Assembly      Shank dia.
H31-F32  1" angle ceiling clip      3.6mm
H32-F32 1-1/4 angle ceiling clip 3.6

Conduit Clip Assemblies

.300 /DN pins, zinc plated plastic flute/washer assembled with conduit clip & eyelet.

proimages/F2511.png

Part No.    Shank length       Assembly     Shank dia.
H31-F12 1 1/2"conduit  clip       3.6mm
H32-F12 1-1/4   3.6
H31-F20 1 3/4"conduit  clip 3.6
H32-F20 1-1/4   3.6
H31-F25 1 1"conduit   clip 3.6
H32-F25 1-1/4   3.6

M6 (6mm) Thread Studs

Zinc plated with plastic washer/flute or with thread cap (C8).

proimages/TC2-0812K.png

Part No.Thread length   Shank length   Shank  dia.
TM6-0812K(C8)      8mm      12mm       3.6mm
TM6-0817K(C8) 8 17 3.6
TM6-0827K(C8) 8 27 3.6
TM6-1212K(C8) 12 12 3.6
TM6-1217K(C8) 12 17 3.6
TM6-1227(C8) 12 27 3.6
TM6-1232(C8) 12 32 3.6

W6 (1/4") Thread Studs

Zinc plated with DN washer or flute or with thread cap (C8).

proimages/TC3-0812K.png

Part No.Thread length   Shank LengthShank Dia.
TW6-0812K(C8)      8mm        12mm        3.8mm
TW6-0817K(C8) 8 17 3.8
TW6-0827K(C8) 8 27 3.8
TW6-1212K(C8) 12 17 3.8
TW6-1217K(C8) 12 17 3.8
TW6-1227(C8) 12 27 3.8
TW6-1232(C8) 12 32 3.8

.300/DN Pins (with 35mm plastic washer)

proimages/X-SW30DN37.png

Part No.Thread length   Shank length      Shank dia.
X-SW35DN37 37mm 39mm 3.7mm
X-SW35DN47 47 49 3.7
X-SW35DN62 62 64 3.8

.300/DN Pins (with 65mm plastic washer)

proimages/X-SW60DN37.png


Part No.    Thread length     Shank length     Shank dia.
X-SW65DN37       37mm       39mm      3.7mm
X-SW65DN47 47 49 3.7
X-SW65DN62 62 64 3.8

Economic Type Hanger Clip Assembly Internal Thread:

Assembled with H32 or DN32 pin with flute or Ø8.5mm plastic washer/flute washer.

proimages/CM6-H32.png

Part No.  Shank length       Assembly    Shank dia.
CM6-H32      32mm M6 clip      3.6mm
CM6-DN32P8 32 M6 clip 3.7
CW6-H32 32 W6 clip 3.6
CW6-DN32P8 32 W6 clip 3.7
CW10-H32 32 W10 clip 3.6
CW10-DN32P8 32 W10 clip 3.7
