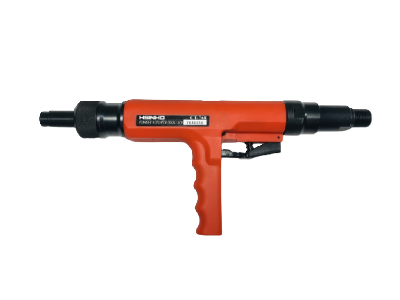

定點竹竿槍

Weight 1.9 kg
Power Loads 0.27 cal.(6.8/11mm) 10 shot/strip
Drive pins
  • φ 0.3" flat head or 8mm head pins.
  • 16 up to 32mm in length.
Applications Special for over head ceiling works.

Power Load

  • L27-4
    Green
  • L27-5
    Yellow
  • L27-6
    Red
產品介紹

φ0.3" flat head pins

Zinc plated with plastic flute "K" Knurled for steel

Part NO.Shank length (inch)Overall length (mm)Shank dia
H38K 1/2 15 3.6
H39K 5/8 18 3.6
H30(K) 3/4 22 3.6
H31 1 28 3.6
H32 1-1/4 34 3.6
H33 1-1/2 40 3.6
H34 2 53 3.6
H35 2-1/2 66 3.6
H36 3 78 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For HDT-02.

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

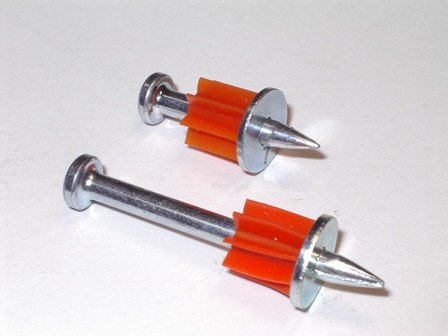

φ0.3" flat head washered pins

Zinc plated with plastic flute and φ12mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
H31W12 1 28 3.6
H32W12 1-1/4 34 3.6
H33W12 1-1/2 40 3.6
H34W12 2 53 3.6
H35W12 2-1/2 66 3.6
H36W12 3 78 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For HDT-02.

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

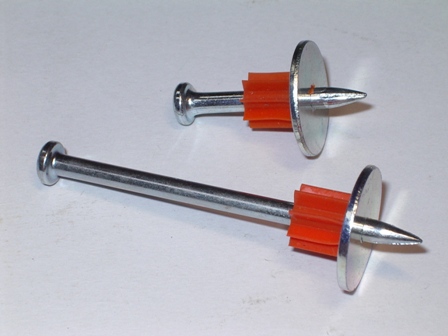

φ0.3" flat head washered pins

Zinc plated with plastic flute and φ20mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
H32W20 1-1/4 34 3.6
H33W20 1-1/2 40 3.6
H34W20 2 53 3.6
H35W20 2-1/2 66 3.6
H36W20 3 78 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360, PAT EXP950PAT For HDT-02.

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
φ0.3" flat head washered pins

Zinc plated with plastic flute and φ25mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
H32W25 1-1/4 34 3.6
H33W25 1-1/2 40 3.6
H34W25 2 53 3.6
H35W25 2-1/2 66 3.6
H36W25 3 78 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For HDT-02.

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

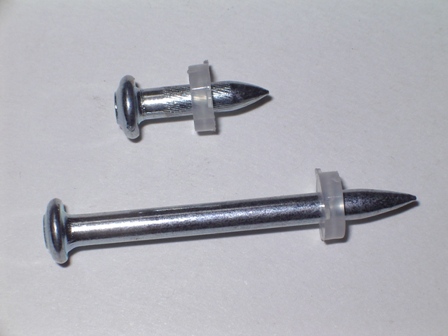

φ8mm head DN pins

Zinc plated with φ8.5mm plastic washer "K" Knurled for steel

Part NO.Shank length (inch)Overall length (mm)Shank dia
EDN16P8 16 19 3.7
EDN19P8 19 22 3.7
DN22P8 22 25 3.7
DN27P8 27 30 3.7
DN32P8 32 35 3.7
DN37P8 37 40 3.7
DN42P8 42 45 3.7
DN47P8 47 50 3.7
DN52P8 52 55 3.8
DN57P8 57 60 3.8
DN62P8 62 65 3.8
DN72P8 72 75 3.8
DN82P8 82 85 3.8
DN97P8 97 100 3.8
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
φ8mm DN or flat head washered pins

Zinc plated with φ8.5mm plastic washer and φ25mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
DN27W25 27 30 3.7
DN37W25 37 40 3.7
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
φ8mm DN or flat head washered pins

Zinc plated with φ8.5mm plastic washer and φ35mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
DN27W35 27 30 3.7
DN37W35 37 40 3.7
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus

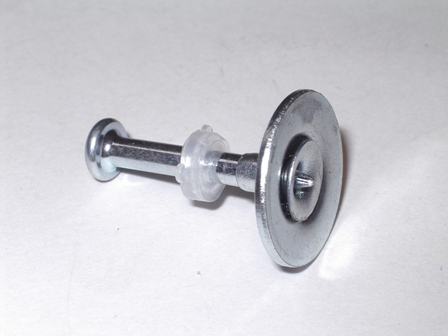

φ8mm head DN washered pins

Zinc plated with φ8.5mm plastic washer Assembled with eyelet washer and φ20mm metal washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
DP825W 27 30 3.7
DP830W 32 35 3.7
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
φ0.3" or 8mm head Top-hat pins.

Zinc plated with plastic flute or φ8.5mm plastic DNwasher Assembled with eyelet washer

Part NO.Shank length (inch)Overall length (mm)Shank dia
H30(K)D10 3/4 22 3.6
H31D10 1 28 3.6
H32D10 1-1/4 34 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
φ8mm head step down shank pins

Zinc plated with plastic flute

Part NO.Shank length (inch)Overall length (mm)Shank dia
SDS3/4 3/4 22 3.8~3.4
SDS1 1 28 3.8~3.4
SDS1-1/8 1-1/8 31 3.8~3.4
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
Angle clip assemblies

φ0.3"flat head pins Zinc plated Pastic flute assembled with eyelet washer and angle clip

Part NO.Shank length (inch)AssemblyShank dia
F321 1 angle ceiling clip 3.6
F322 1-1/4 angle ceiling clip 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
Angle clip assemblies

φ8mm head DN pins Zinc plated φ8.5mm plastic washer assembled with eyelet washer and convex angle clip

Part NO.Shank length (inch)AssemblyShank dia
DPA25AC 27 angle ceiling clip 3.7
DPA30AC 32 angle ceiling clip 3.7
Applications

with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
Conduit clip assemblies

0.3" flat head or 8mm DN pins Zinc plated plastic flute (or φ8.5mm plastic washer) assembled with eyelet washer and conduit clip

Part NO.Shank length (inch)AssemblyShank dia
F2511 1 1/2"conduit  clip
F2512 1-1/4
F2521 1 3/4"conduit  clip
F2522 1-1/4
F2531 1 1"conduit   clip
F2532 1-1/4
Applications

with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
φ6mm thread studs

Zinc plated with DN washer or flute or with thread cap(C8).

Part NO.Thread length (mm)Shank length (mm)Shank dia
TC2-0812K(C8) 8 12 3.6
TC2-0817K(C8) 8 17 3.6
TC2-0827K(C8) 8 27 3.6
TC2-1212K(C8) 12 12 3.6
TC2-1217K(C8) 12 17 3.6
TC2-1227(C8) 12 27 3.6
TC2-1232(C8) 12 32 3.6
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655 For desa PRO-08.PRO-08 plus.

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
φ1/4" thread studs

Zinc plated with DN washer or flute or with thread cap(C8).

Part NO.Thread length (mm)Shank length (mm)Shank dia
TC3-0812K(C8) 8 12 3.8
TC3-0817K(C8) 8 17 3.8
TC3-0827K(C8) 8 27 3.8
TC3-1212K(C8) 12 12 3.8
TC3-1217K(C8) 12 17 3.8
TC3-1227(C8) 12 27 3.8
TC3-1232(C8) 12 32 3.8
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
Soft plastic washered pins

φ8mm head DN pin with φ30mm plastic washer

Part NO.Thread length (mm)Shank length (mm)Shank dia
X-SW30DN37 37 39 3.7
X-SW30DN47 47 49 3.7
X-SW30DN62 62 64 3.8
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT, For CT655
For fastening plastic and wood sheets.
metal and plastic netting and insulation

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
Soft plastic washered pins

φ8mm head DN pin with φ60mm plastic washer

Part NO.Thread length (mm)Shank length (mm)Shank dia
X-SW60DN37 37 39 3.7
X-SW60DN47 47 49 3.7
X-SW60DN62 62 64 3.8
Applications

For low velocity PAT. with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT, For CT655
For fastening plastic and wood sheets.
metal and plastic netting and insulation

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
X-cc celiing clip assemblies

assembled with DN pin and φ8.5mm plastic DN washer Zinc plated "K" Knurled for steel

Part NO.Thread length (mm)Shank length (mm)Shank dia
X-CCEDN16P8 16 18 3.7
X-CCDN27P8 27 29 3.7
X-CCDN32P8 32 34 3.7
Applications

with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655
For ceiling works

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
Economic Type Hanger clip assemblies

inetrnal thread:
φ6mm(M6), φ1/4"(W6), φ3/8"(W10)
assembled with H32 or DN32 pin with flute or φ8.5mmDN washer

Part NO.Shank length (mm)AssemblyShank dia
CM6-H32 32 M6 clip 3.6
CM6-DN32P8 32 M6 clip 3.7
CW6-H32 32 W6 clip 3.6
CW6-DN32P8 32 W6 clip 3.7
CW10-H32 32 W10 clip 3.6
CW10-DN32P8 32 W10 clip 3.7
Applications

with φ8.6mm barrel guide.
EXP66 PAT, , EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT For CT655
For ceiling works

  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • desa
    PRO-08 / PRO-08 plus
