.300 FLAT HEAD PINS

.300 FLAT HEAD PINS
.300 Flat Head Pins

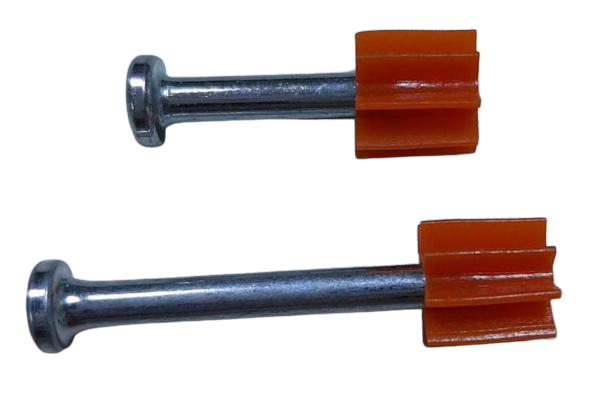

.300 flat head pins (DN pins, 8mm head pins), zinc plated with plastic flute, "K" Knurled shank for steel.
 Part No.       Shank length          Overall length           Shank dia.
 H38K 1/2"       15mm      3.6mm
 H39K 5/8 18 3.6
 H30(K) 3/4 22 3.6
 H31 1 28 3.6
 H32 1-1/4 34 3.6
 H33 1-1/2 40 3.6
 H34 2 53 3.6
 H35 2-1/2 66 3.6
 H36 3 78 3.6

Applications
  • PAT. EXP75 / EXP360 / EXP380 / EXP950 / EXP100 / EXP101 / HDT-02
  • HILTI DX3 / DX460
  • Ramset D45 / D60 / D200
