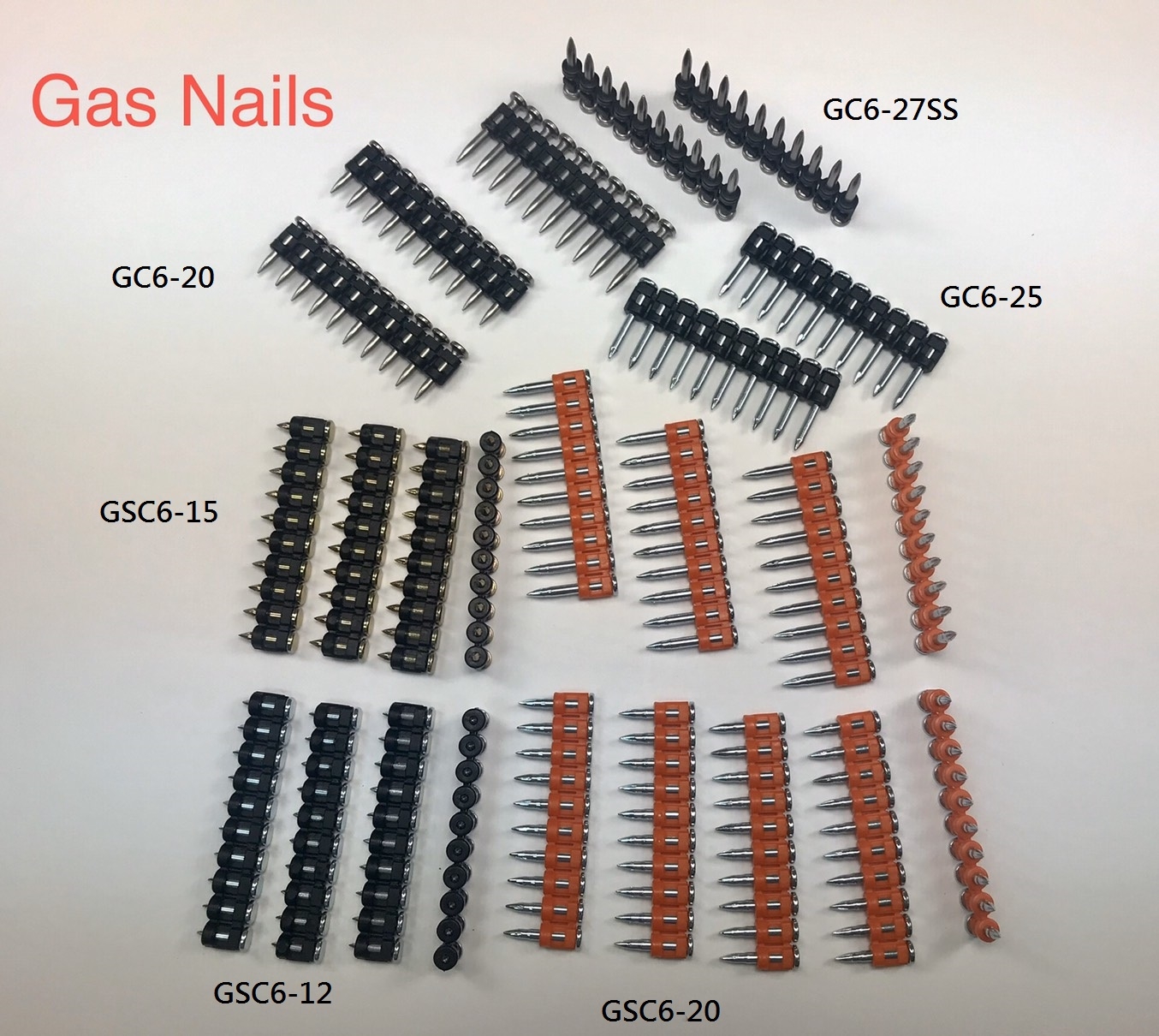

GSC6 / GC6 NAILS

GSC6 / GC6 NAILS
Gas Pins
  • 1/4" head dia.. Step shank.
  • GSC6 step shank dia. 2.6~3.0mm and GC6 shank dia. 2.7mm.
  • Zinc plated or yellow or black oxide.
  • 10 pcs/strip.
  • GSC6 step shank pins for steel, hard and prestressed and GC6 pins for standard concrete (C25) and wood.
  • Use in company with fuel cell for GN100-M20, GN100-M30, GN100-M40, / SPIT PULSA 700, 1000 / RAMSET TRAKFAST TF1100.
 Product Catalog Download

Inquiry
Product Introduce

Part No.          Shank length        Shank dia.        Zinc Plated                       HRC       Box Q'ty         Applications

GSC6-15
 15mm 2.6-3.0mm Zinc Plated, 3.5um
 54-56 1000 For steel, hard and prestressed.
GSC6-20 20
 2.6-3.0 Zinc Plated, 3.5um 54-56 1000
GSC6-25 25 2.6-3.0 Zinc Plated, 3.5um  54-56 1000
GC6-20 20 2.6 Zinc Plated, 3.5um 54-56 1000 For standard concrete (C25) and wood.
GC6-25 25 2.6 Zinc Plated, 3.5um  54-56 1000
GC6-30 30 2.6 Zinc Plated, 3.5um 54-56 1000
GC6-35 35 2.6 Zinc Plated, 3.5um  54-56 1000
GC6-40 40 2.6 Zinc Plated, 3.5um 54-56 1000
