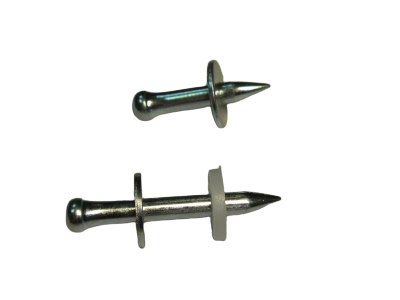

Round head dia φ5.5mm Zinc plated with 1φ12mm metal washer or add another 1 φ12mm plastic washer "K" Knurled for steel
| Part NO. | Shank length (mm) | Overall length (mm) | Shank dia |
|---|
| ENK16S12(P12) |
16 |
19 |
3.7 |
| ENK19S12(P12) |
19 |
22 |
3.7 |
| (E)NK22S12(P12) |
22 |
25 |
3.7 |
| NK27S12(P12) |
27 |
30 |
3.7 |
| NK32S12(P12) |
32 |
35 |
3.7 |
| NK37S12(P12) |
37 |
40 |
3.7 |
| NK42S12(P12) |
42 |
45 |
3.7 |
| NK47S12(P12) |
47 |
50 |
3.7 |
| NK54S12(P12) |
54 |
57 |
3.8 |
| NK62S12(P12) |
62 |
65 |
3.8 |
| NK72S12(P12) |
72 |
75 |
3.8 |
| NK82S12(P12) |
82 |
85 |
3.8 |
| NK97S12(P12) |
97 |
100 |
3.8 |
Applications
For low velocity PAT. For fastening wood sheet and metal and metal strip to concrete and wood to steel. EXP88
- HILTI
DX36 / DX350 / DX351 / DXA40 DX460
