inetrnal thread:
- φ6mm(M6)
- φ1/4"(W6)
- φ3/8"(W10)
assembled with H32 or DN32 pin with flute or φ8.5mmDN washer

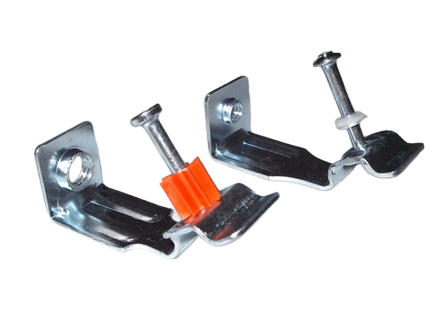

| Part NO. | Shank length (mm) | Assembly | Shank dia |
|---|
| CM6-H32 |
32 |
M6 clip |
3.6 |
| CM6-DN32P8 |
32 |
M6 clip |
3.7 |
| CW6-H32 |
32 |
W6 clip |
3.6 |
| CW6-DN32P8 |
32 |
W6 clip |
3.7 |
| CW10-H32 |
32 |
W10 clip |
3.6 |
| CW10-DN32P8 |
32 |
W10 clip |
3.7 |
Applications
with φ8.6mm barrel guide.
EXP66 PAT, EXP75 PAT, EXP99S PAT, EXP360 PAT, EXP950PAT
- HILTI DX36 / DX350 / DX351 / DXA40 DX460
- desa PRO-08 / PRO-08 plus
