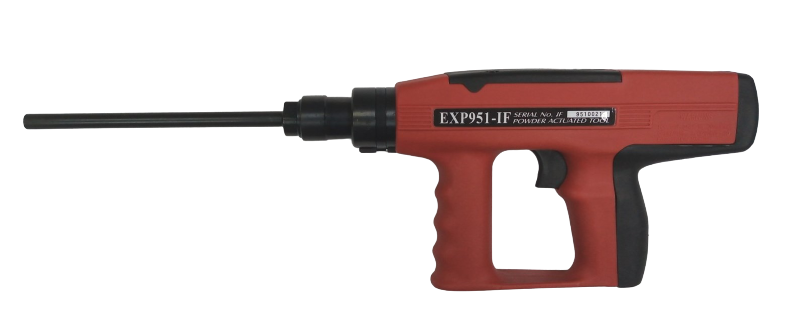

Insulation Fastening Tool (semi-auto PAT)-EXP951IF

Insulation Fastening Tool (semi-auto PAT)-EXP951IF
EXP951IF
  • Special for insulation fastening with IF type guide and long IF type piston.
  • Exceptionally quiet. It's the quietest among powder actuated tools in current market.
  • Balanced and vented to reduce recoil. Easy to work without fatique.
  • Semi automatic piston return and cartridges advancing system.
  • Power level adjustment dial.
  • Designed for high volume fastening applications.
  • Easy cleaning and servicing.
Powder Loads .27 cal. (6.8/11mm), 10 pcs/strip
Weight 2.5 kg
Drive pins 8mm head DI pins, length from 37mm to 90 mm assembled with different thicknesss of 60mm dia. plastic plate. (Thickness from 25 mm to 160mm)
Applications for fastening thermal insulation materials (rockwool, glass fibre etc) thickness from 25 mm to 100mm into concrete and steel (3~6mm thickness).


Powder Load

L27-3 (Green Color)
proimages/pload_l27-4.png

L27-4 (Yellow Color)
proimages/pload_l27-5.png

L27-5/L27-6 (Red Color)
 proimages/pload_l27-6.png

L27-7 (Black Color)
  proimages/L27-7.png
