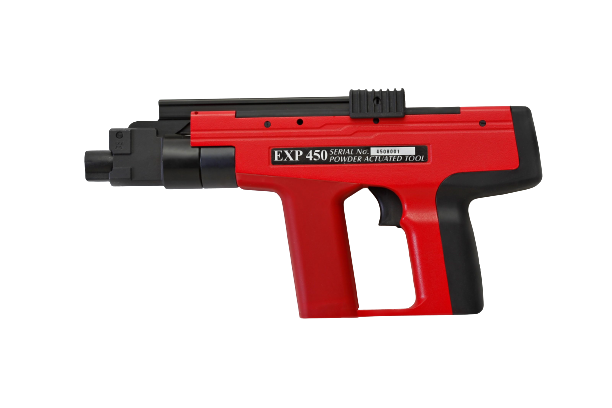

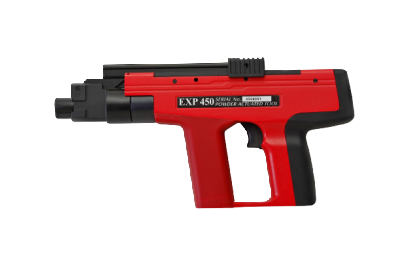

• 半自動擊釘槍, 為活塞式推桿打擊, 設計安全, 非常耐用, 適合長期連續施工
  • 配備消音裝置, 動力調節桿及連發火藥筒設計
  • 全面適用於鋼板, 混泥土 與實心磚的固定, 釘子長度可達97mm
  • 為裝潢業, 水電業, 木工業, 空調業, 水管工程業, 室內外廣告業, 工廠維修部門, 建築工程業等廣泛使用

重量 3.2 KG
火藥筒 .27 口徑(6.8/11mm)連發火藥筒, 每排10發
擊釘
  • NK Pins
  • M6, M8, M10, 1/4", 3/8" 螺牙釘_
  • 釘長由16mm to 97mm
用途
  • 固定金屬材或木材於鋼構或混凝土
  • 電氣設備, 開關箱的安裝
  • 電線電纜管環,夾的固定
  • 托架,鑄模的固定
適用行業
  • 裝潢業
  • 電工, 木工, 泥水工, 鐵工, 空調,
  • 金屬工程, 廣告安裝
  • 工廠維修部門
  • 營造業

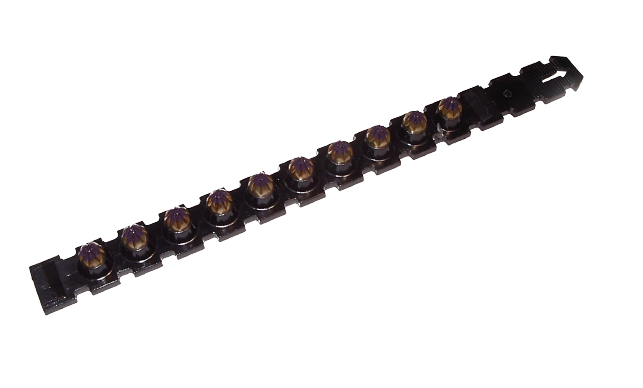

Power Load

  • L27-3  綠色

  • L27-4  黃色

  • L27-5, L27-6 紅色

  • L27-7  黑色

產品介紹
擊釘

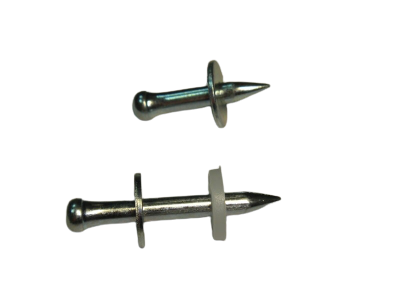

NK Pin

Round head diaØ5.5mm Zinc plated with 1 Ø12mm metal washer or add another 1 Ø12mm plastic washer "K" Knurled for steel

Part No.Shank lengthOverall lengthShank dia
ENK16S12(P12)      16mm      19mm      3.7mm
ENK19S12(P12) 19 22 3.7
(E)NK22S12(P12) 22 25 3.7
NK27S12(P12) 27 30 3.7
NK32S12(P12) 32 35 3.7
NK37S12(P12) 37 40 3.7
NK42S12(P12) 42 45 3.7
NK47S12(P12) 47 50 3.7
NK54S12(P12) 54 57 3.8
NK62S12(P12) 62 65 3.8
NK72S12(P12) 72 75 3.8
NK82S12(P12) 82 85 3.8
NK97S12(P12) 97 100 3.8
Applications

For EXP450

  • HILTI
    DX450
  • desa
    PRO-12
M6 Thread Studs.

6mm.thread. Zinc plated with Ø12mm metal washer and Ø12mm plastic washer or thread cap (C),  "K" Knurled for steel

Part No.Thread lengthShank lengthShank dia
TM6-0812KP12 (C)      8mm      12mm      3.7mm
TM6-0817KP12 (C) 8 17 3.7
TM6-0827D12 (C) 8 27 3.7
TM6-1112KP12 (C) 11 12 3.7
TM6-1122D12 (C) 11 22 3.7
TM6-1127D12 (C) 11 27 3.7
TM6-1132D12 (C) 11 32 3.7
TM6-1142D12 (C) 11 42 3.7
TM6-2027D12 (C) 20 27 3.7
TM6-2032D12 (C) 20 32 3.7
Applications

For EXP450

  • HILTI
    DX450 / DX600N
  • desa PRO-12
W6 Threaded Studs.

1/4"-20UNC thread. Zinc plated withØ12mm metal washer andØ12mm plastic washer or thread cap (C) "K" Knurled for steel

Part No.Thread lengthShank lengthShank dia
TW6-0812KP12 (C)      8mm      17mm      3.8mm
TW6-0817KP12 (C) 8 17 3.8
TW6-0827D12 (C) 8 27 3.8
TW6-1112KP12 (C) 11 12 3.8
TW6-1127D12 (C) 11 27 3.8
TW6-1132D12 (C) 11 32 3.8
TW6-2027D12 (C) 20 27 3.8
TW6-2032D12 (C) 20 32 3.8
Applications

For EXP450.

  • HILTI
    DX450 / DX600N
  • desa
    PRO-12
M8 Threaded Suds.

8 mm thread. Zinc plated with Ø12mm metal washer and Ø12mm plastic washer "K" Knurled for steel

Part No.Thread lengthShank lengthShank dia
TM8-1212KP12      12mm      12mm      3.8mm
TM8-1227D12 12 27 3.8
TM8-1232D12 12 32 3.8
TM8-2027D12 20 27 3.8
TM8-2032D12 20 32 3.8
Applications

For EXP450

  • HILTI
    DX450 / DX600N
  • desa PRO-12
W10 Threaded Studs.

3/8"-16 thread. Zinc plated with 2 Ø12mm metal washer

Part No.Thread lengthShank lengthShank dia
W10-3032D12      30mm      32mm      4.5mm
Applications

For EXP450.

  • HILTI
    DX450 / DX600N
  • desa PRO-12
3/8"  Internally Threaded Studs

3/8"-16 internally thread. Zinc plated with φ12mm plasticl washer

Part No.Thread lengthShank lengthShank dia
TI-35P12      20mm      32mm      3.8mm
Applications

For low velocity PAT. EXP88 For ceiling works.

  • HILTI
    DX36M / DX450
  • desa PRO-12
TB Eyelet Pins

Eyelet cup assembled with Ø12mm plastic washer Zinc plated

Part No.Shank lengthOverall lengthShank dia
E2522P12      22mm      25mm      3.8mm
E2527P12 27 30 3.8
E2532P12 32 35 3.8
Applications

For EXP450

  • HILTI
    DX36M / DX450
  • desa PRO-12
X-CC ceiling clip Assembled with NK pin

with φØ12mm metal washer and Ø12mm plastic washer

Part No.Shank lengthOverall lengthShank dia
X-CCNK27D12       27mm      30mm      3.7mm
X-CCNK32D12 32 35 3.7
Applications

For EXP450

  • HILTI DX450
  • desa PRO-12
Standard Type Hanger Ceiling Clip Assembly

Internal thread: φØ6mm(M6), Ø8mm(M8), Ø10mm(M10), Assembled with NK pin with Ø12mm metal washer and φ12mm plastic washer

Part No.Shank lengthOverall lengthShank dia
CM6-NK32D12      32mm       35mm      3.7mm
CM8-NK32D12 32 35 3.7
CM10-NK32D12 32 35 3.7
Applications

For EXP450.

  • HILTI DX450
  • desa PRO-12
