EXP100-IF EXP100-IF

Operation Manual

EXP100-IF

Special for insulation fastening with IF type guide and long IF type piston.
Can be interchangelable to standard single shot type (EXP100) or magazine type (EXP100M) for different applications.
Unique design with patent in Taiwan and China.
Exceptionally quiet. It's the quietest among powder actuated tools in current market.
Balanced and vented to reduce recoil. Easy to work without fatique.
Simple mechanical automatic piston return and cartridges advancing system.
Power level adjustment dial.
Designed for high volume fastening applications.
Easy cleaning and servicing.

Powder Loads	.27 cal. (6.8/11mm), 10 pcs/strip
Weight	3.3 kg
Drive pins	8mm head DI pins, length from 37mm to 90 mm assembled with different thicknesss of 60mm dia. plastic plate. (Thickness from 25 mm to 160mm)
Applications	for fastening thermal insulation materials (rockwool, glass fibre etc) thickness from 25 mm to 100mm into concrete and steel (3~6mm thickness).

L27-3 (Green Color)

L27-4 (Yellow Color)

L27-5/L27-6 (Red Color)

L27-7 (Black Color)
proimages/L27-7.jpg

Q'ty :

Inquiry

Plastic insulation fasteners

8mm head DI pin, assembled with 60mm dia. plastic insulation plate.

.300 DN Pins (with Ø35mm plastic washer)

proimages/X-SW30DN37.jpg

.300 DN Pins (with Ø65mm
plastic washer)

proimages/X-SW60DN37.jpg

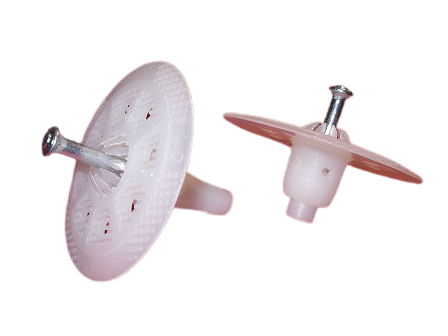

Part No.	Shank length	Shank dia	Insulation thickness
IF6-25-DI37	37mm	4.5mm	25mm
IF6-30-DI37	37	4.5	30
IF6-35-DI47	47	4.5	35
IF6-40-DI52	52	4.5	40
IF6-50-DI52	52	4.5	50
IF6-60-DI52	52	4.5	60
IF6-75-DI52	52	4.5	75
IF6-100-DI52	52	4.5	100
IF6-120-DI52	52	4.5	120

Part No.	Thread length	Shank length	Shank dia.
X-SW35DN37	37mm	39mm	3.7mm
X-SW35DN47	47	49	3.7
X-SW35DN62	62	64	3.8

Part No.	Thread length	Shank length	Shank dia.
X-SW65DN37	37mm	39mm	3.7mm
X-SW65DN47	47	49	3.7
X-SW65DN62	62	64	3.8

Applications
For fasten insulation materials to
concrete and steel.

EXP101 (EXP100IF) / EXP360IF / EXP950IF / EXP750IF
