EXP360A - A semi-automatic PAT with power regulator

Weight 2.3 kg
Powder Loads 0.27 cal.(6.8/11mm) 10 pcs/strip
Drive pins
  • DN pins, .300 head or 8mm head pins.
  • M6 (6mm), M8 (8mm), or 1/4"-20 thread studs.
  • 1/2" up to 2-1/2" in length.
Applications For wood, concrete and steel.

Powder Load

L27-3  (Geen color)
proimages/pload_l27-4.png

L27-4  (Yellow color)
proimages/pload_l27-5.png

L27-5 / L27-6  (Red color)
proimages/pload_l27-6.png

L27-7  (Black color)

 proimages/L27-7.png

Inquiry
Product Introduce

EXP360A can drive pins as following:

.300 Head Pin
.300 head pins, DN pins, 8mm head pins, with zinc plated with plastic flute washer, "K" Knurled shank for steel
 proimages/H38K.png

Part No.    Shank length         Overall length     Shank dia.
H38K 1/2"       15mm      3.6mm
H39K 5/8 18 3.6
H30(K) 3/4 22 3.6
H31 1 28 3.6
H32 1-1/4 34 3.6
H33 1-1/2 40 3.6
H34 2 53 3.6
H35 2-1/2 66 3.6

     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, EXP101, HDT-02, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200

.300 Head Pin with 12mm metal washer
Zinc plated with plastic flute and Ø12mm metal washer
proimages/H32W20.png



Part No.  Shank length      Overall length      Shank dia.
H32W20  1-1/4"       34mm       3.6mm
H33W20 1-1/2 40 3.6
H34W20 2 53 3.6
H35W20 2-1/2 66 3.6

     Applications:
  • PAT. EXP75, EXP100, EXP360, EXP950, HDT-02.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

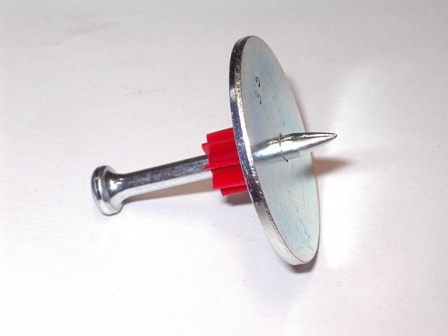

.300  Head Pin with 25mm metal washer

Zinc plated with plastic flute and Ø25mm metal washer

proimages/H32W25.png

Part No.    Shank length     Overall length     Shank dia.
H32W25 1-1/4      34mm      3.6mm
H33W25 1-1/2 40 3.6
H34W25 2 53 3.6
H35W25 2-1/2 66 3.6

     Applications:
  • PAT. EXP75, EXP76, EXP360A, EXP380, EXP951, EXP100, HDT-02, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

DN Pin

Zinc plated with Ø8.5mm plastic washer, "K" is Knurled shank for steel
proimages/EDN16P8.png


Part No.  Shank length      Overall length     Shank dia.
EDN16P8      16mm      19mm      3.7mm
EDN19P8 19 22 3.7
DN22P8 22 25 3.7
DN27P8 27 30 3.7
DN32P8 32 35 3.7
DN37P8 37 40 3.7
DN42P8 42 45 3.7
DN47P8 47 50 3.7
DN52P8 52 55 3.8
DN57P8 57 60 3.8
DN62P8 62 65 3.8
DN72P8 72 75 3.8

    Applications:
  • PAT. EXP75, EXP76, EXP360A, EXP951, EXP96, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

DN Pin with 25mm metal washer

Zinc plated with Ø8.5mm plastic washer and Ø25mm metal washer
proimages/DN27W25.png


Part No.  Shank length      Overall length      Shank dia.
DN27W25       27mm      30mm      3.7mm
DN37W25 37 40 3.7
     Applications:
  • PAT. EXP75, EXP76, EXP360A, EXP951,EXP96, EXP100, etc.
  • HILTI
    DX2 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

DN Pin with 35mm metal washer

Zinc plated with Ø8.5mm plastic washer and Ø35mm metal washer
proimages/DN27W35.png



Part No.    Shank length         Overall length      Shank dia.
DN27W35      27mm      30mm      3.7mm
DN37W35 37 40 3.7
     Applications:
  • PAT. EXP75, EXP76, EXP360A, EXP96, EXP951, EXP100, etc.
  • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

DN Pin with 20mm metal washer & eyelet.

Zinc plated with Ø8.5mm plastic washer Assembled with eyelet washer and Ø20mm metal washer
proimages/DP825W.png



Part No.    Shank length     Overall length     Shank dia.
DP825W       27mm      30mm      3.7mm
DP830W 32 35 3.7
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

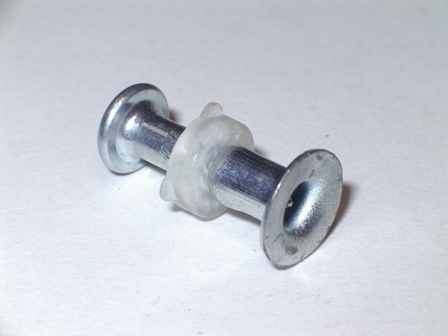

.300 (8mm) Head Pin with Top-Hat

Zinc plated with plastic flute or Ø8.5mm plastic washer assembled with eyelet washer

proimages/H30D10.png


Part No.     Shank length     Overall length      Shank dia.
H30(K)D10   3/4"      22mm      3.6mm
H31D10 1 28 3.6
H32D10 1-1/4 34 3.6
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

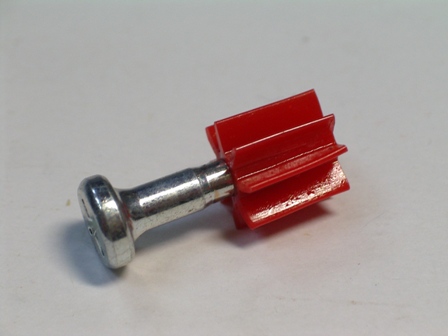

8mm Head Pin (step down shank)

Zinc plated with plastic flute

proimages/SDS3.png


Part No. Shank length     Overall length     Shank dia.
SDS3/4 3/4"      22mm      3.8~3.4mm
SDS1 1 28 3.8~3.4
SDS1-1/8 1-1/8 31 3.8~3.4
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200

Angle Clip Assemblies

.300 head pins, zinc plated pastic flute assembled with eyelet washer and angle clip

proimages/F321.png

Part No.      Shank length        Assembly      Shank dia.
F321  1" angle ceiling clip      3.6mm
F322 1-1/4 angle ceiling clip 3.6
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

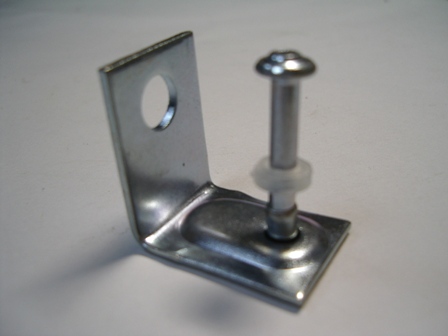

Angle Clip Assemblies

Ø8mm head (DN pins), zinc plated Ø8.5mm plastic washer assembled with eyelet washer and convex angle clip

proimages/DPA25AC.png

Part No.     Shank length       Assembly       Shank dia.
DPA25AC      27mm angle ceiling clip      3.7mm
DPA30AC 32 angle ceiling clip 3.7
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, CT-200
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

Conduit Clip Assemblies

.300 head pins / 8mm head pins / DN pins, zinc plated plastic flute/washer assembled with  conduit clip & eyelet.

proimages/F2511.png

Part No.    Shank length       Assembly     Shank dia.
DN27F12 1 1/2"conduit  clip       3.6mm
DN32F12 1-1/4   3.6
DN27F20 1 3/4"conduit  clip 3.6
DN32F20 1-1/4   3.6
DN27F25 1 1"conduit   clip 3.6
DN32F25 1-1/4   3.6
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, CT-200, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

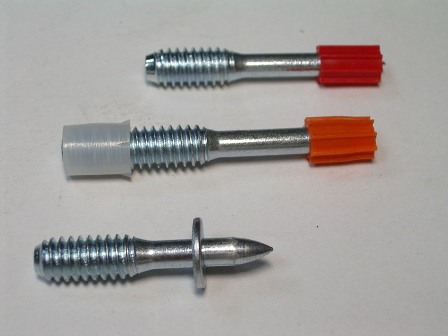

6mm Thread Studs

Zinc plated with plasticwasher/lute or with thread cap(C8).

proimages/TC3-0812K-c8.png

Part No.  Thread length     Shank length     Shank dia.
TM6-0812K(C8)      8mm      12mm       3.6mm
TM6-0817K(C8) 8 17 3.6
TM6-0827K(C8) 8 27 3.6
TM6-1212K(C8) 12 12 3.6
TM6-1217K(C8) 12 17 3.6
TM6-1227(C8) 12 27 3.6
TM6-1232(C8) 12 32 3.6
Applications:

  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, CT768
  • HILTI
    DX36 / DX350 / DX351 / DXA40 DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

1/4" Thread Studs

Zinc plated with DN washer or flute or with thread cap(C8).

proimages/TC3-0812K-c8.png




Part No.  Thread length       Shank length       Shank dia.
TW6-0812K(C8)      8mm        12mm        3.8mm
TW6-0817K(C8) 8 17 3.8
TW6-0827K(C8) 8 27 3.8
TW6-1212K(C8) 12 17 3.8
TW6-1217K(C8) 12 17 3.8
TW6-1227(C8) 12 27 3.8
TW6-1232(C8) 12 32 3.8
    Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX2 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

.300 /DN Pins with 35mm plastic washer

proimages/X-SW30DN37.png




Part No.      Thread length       Shank length        Shank dia.
X-SW35DN37      37mm      39mm      3.7mm
X-SW35DN47 47 49 3.7
X-SW35DN62 62 64 3.8
Applications:

For fastening plastic and wood sheets.
Metal and plastic netting and insulation

  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

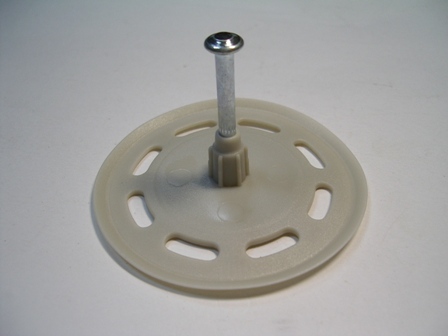

.300 / DN Pins with 65mm plastic washer

proimages/X-SW60DN37.png




Part No.      Thread length       Shank length       Shank dia.
X-SW65DN37       37mm       39mm      3.7mm
X-SW65DN47 47 49 3.7
X-SW65DN62 62 64 3.8
Applications:

For fastening plastic and wood sheets.
Metal and plastic netting and insulation

  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, etc.
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

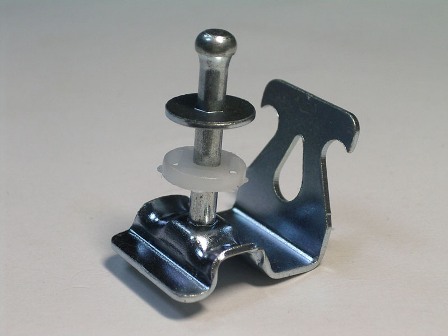

X-CC Celiing Clip Assemblies

assembled with DN pin and Ø8.5mm plastic DN washer Zinc plated.  "K" Knurled for steel

proimages/X-CCEDN16P8.png


Part No.  Shank length       Overall length       Shank dia.
X-CCEDN16P8         16mm      19mm      3.7mm
X-CCDN27P8    27 30 3.7

     Applications:

  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, CT655 (for ceiling works)
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
    PRO-08 / PRO-08 plus

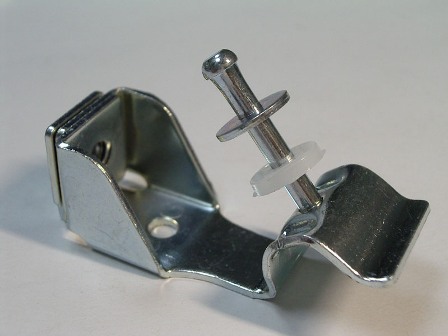

Economic Type Hanger Clip Assemblies Internal Thread

Ø6mm(M6)
Ø1/4"(W6)
Ø3/8"(W10)
assembled with H32 or DN32 pin with flute or Ø8.5mm plastic washer/flute washer

proimages/CM6-NK32D12.png


Part No.  Shank length       Assembly    Shank dia.
CM6-H32      32mm M6 clip      3.6mm
CM6-DN32P8 32 M6 clip 3.7
CW6-H32 32 W6 clip 3.6
CW6-DN32P8 32 W6 clip 3.7
CW10-H32 32 W10 clip 3.6
CW10-DN32P8 32 W10 clip 3.7
     Applications:
  • PAT. EXP75, EXP360, EXP380, EXP950, EXP100, CT655 (for ceiling works)
  • HILTI
    DX36 / DX350 / DX351 / DXA40 / DX460
  • Ramset
    D45 / D60 / D200
  • Spit
    P60 / P200
  • Desa
          PRO-08 / PRO-08 plus
